PVDF Sheet Rod semi-crystalline thermoplastics pure weldable surface

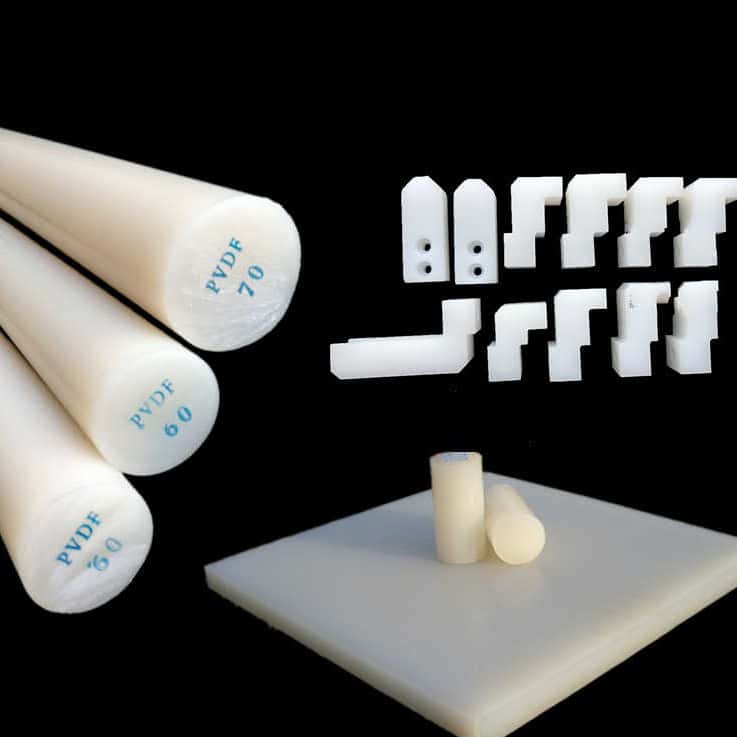

PVDF (Polyvinylidene Fluoride) sheet and rod are semi-crystalline thermoplastics valued for their high purity and weldability, excellent chemical resistance, and good mechanical properties.
| Rod Φ | 2mm-500mm | |
| Sheet thickness | 1mm-200mm | |
| MOQ | 1 piece | |
| Customization | Available | |
| Leadtime | Immediately | |
Get your detailed quotation & experts support now.
| ▷Inquiry |
PVDF Sheet Rod semi-crystalline thermoplastics pure weldable surface
| Description | |
|
|
|
Introduction |
|||||
| PVDF (Polyvinylidene Fluoride) sheet and rod are semi-crystalline thermoplastics valued for their high purity and weldability, excellent chemical resistance, and good mechanical properties. This material is a very pure polymer, typically containing no additives like ultraviolet stabilizers or lubricants, making it ideal for applications requiring cleanliness, such as in the semiconductor industry for ultra-pure water systems. PVDF exhibits good resistance to most chemicals and oxidizing agents, though it can be attacked by strong bases and certain concentrated solvents. It maintains high mechanical strength, stiffness, and offers good abrasion resistance. The material also features excellent resistance to ultraviolet light and weathering, ensuring long-term performance outdoor. With a continuous service temperature up to 150°C, it is also inherently flame-retardant (UL94 V-0). Its unique property of being an organic piezoelectric material also makes it suitable for some sensors and actuators. |
| Key features |
| •High purity and good chemical resistance |
| •Excellent mechanical strength and stiffnes |
| •Good abrasion resistance |
| •Excellent weldablility |
| •Good anti-ultraviolet and weathering resistance |
| •High continuous use temperature (up to 150°C |
| • Inherent flame retardancy (UL94 V-0) |
| Typical application |
| •High-purity piping for semiconductor industry |
| •Chemical tank linings and seals |
| •Food processing equipment parts |
| •Wire and cable insulation |
| •Long-term outdoor applications |
| •Pipelines, seals, and pump components in petrochemical industry |
|
|
  |
● Continuous use within a wide range of temperatures: -30°C~150°C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
● Inherent fire resistance: UL 94-V0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
● FDA compliance, Food contactable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
● Self-lubricating, highly slidable ● Low coefficient of friction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
● Wide chemical resistance to most acids, aliphatic/aromatic organic compounds, chlorinated solvents, alcohols, etc. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
● Very easily joined by welding |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
● Processed and cutable to any size | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
● Parts and components processing service according to artwork, fast and accruate. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
● Semiconductors, electronics, ● chemical devices,food industry, ● pipes, seals, pump parts, ● rotating discs, valves, slides, etc |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
