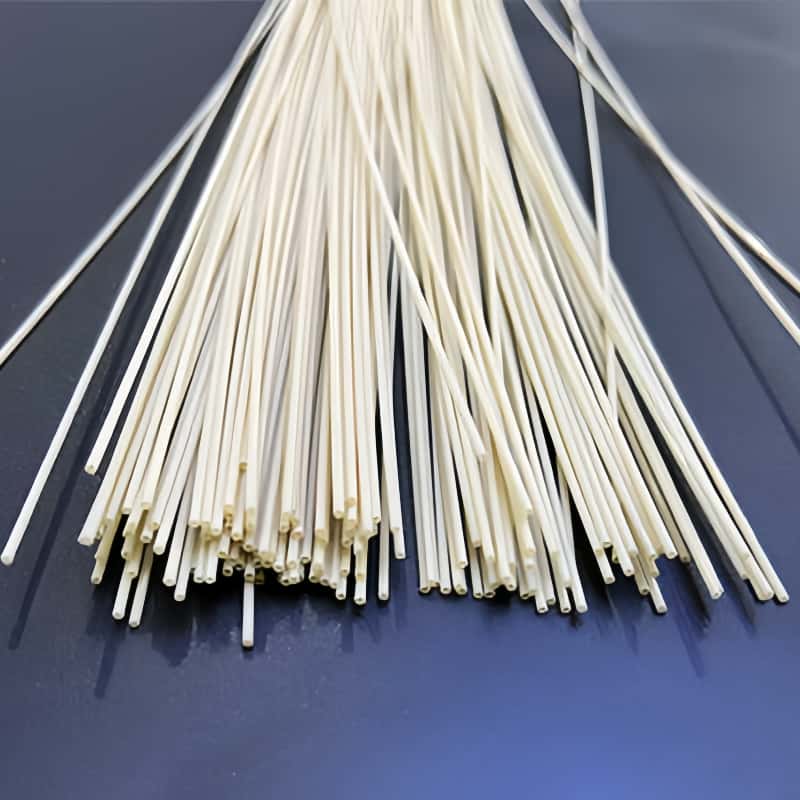

  • PEEK capillary tubing high pressure & chemical stable for demanding fluidic applications.
PEEK (Polyether Ether Ketone) capillary tubing is a high-performance product known for its exceptional chemical compatibility and ability to withstand high pressures,are ideal for demanding fluidic applications.
ID range 0.06~12.66(mm)
OD range 0.40~18.90(mm)
MOQ 500m
Customization  Available
Leadtime 7 days

Get your detailed quotation & experts support now.

▷Inquiry
PEEK capillary tubing high pressure & chemical stable for demanding fluidic applications.

Description

Introduction
PEEK (Polyether Ether Ketone) capillary tubing is a high-performance product known for its exceptional chemical compatibility and ability to withstand high pressures,are ideal for demanding fluidic applications. They feature very smooth internal surfaces that ensure excellent flow characteristics and very low carryover, which helps in maintaining the integrity of samples. Compatible with most organic solvents and standard chromatography systems, PEEK capillaries are extensively used in capillary HPLC and LC-mass spectrometry. Their robust design, which can include a stainless-steel coated layer for ultra-high pressure tolerance (e.g., up to 600 bar), provides a metal-free sample flow path, making them a reliable "lifeline" in bio-inert analytical systems.
Key features
•Excellent Chemical Compatibility
•High-Pressure Resistance
•Low Carryover & Smooth Interior
•Medical compliance
•High-Temperature Resistance
•Good Mechanical Interlock
Typical application
•Capillary HPLC & LC-MS
•Bio-inert LC Systems
•Microfluidic Chip Connections
•Chemical Processing
•Analytical Instrumentation
•Medical & Pharmaceutical Systems





   ●  Strong,harsh,broad chemical resist
●  Stable from almost all of sovents
●  Long long time hydrolysis stability







  ●  Medical applicable (ISO10993)
●  Food contact compliance (FDA)



  ●  Good strength & toughness
●   Excellent wear resistance
●  High pressure resistance
●  Thin wall tubing available




  ●  Inherent flame retardance UL 94 V-0
●  Long time serving temperature 260 C



    ● Mutiple Colors optional
  ● Nature /black /blue /yellow /orange...

(OD mm ----- ID mm)   (OD mm ---- ID mm)   (OD mm ----- ID mm)
0.40 --- 0.30   1.80 --- 1.00   7.20 --- 0.15
0.50 --- 0.40   1.80 --- 1.10   7.20 --- 0.30
0.79 --- 0.25   1.80 --- 1.50   7.20 --- 0.45
0.90 --- 0.70   1.80 --- 1.60   7.50 --- 0.40
1.20 --- 1.00   1.90 --- 1.60   7.60 --- 0.15
1.25 --- 0.90   1.90 --- 1.70   7.60 --- 0.30
1.30 --- 0.90   2.00 --- 1.00   7.60 --- 0.45
1.35 --- 0.95   2.10 --- 1.90   8.96 --- 8.66
1.35 --- 1.05   2.33 --- 1.57   10.00 --- 4.90
1.40 --- 1.20   2.60 --- 2.40   10.20 --- 8.00
1.40 --- 1.15   2.80 --- 2.40   10.22 --- 9.82
1.50 --- 1.00   2.80 --- 2.50   10.42 --- 9.82
1.50 --- 1.20   3.00 --- 2.64   10.56 --- 10.26
1.50 --- 1.35   3.20 --- 1.20   10.62 --- 9.82
1.55 --- 0.93   3.20 --- 1.60   10.82 --- 9.82
1.57 --- 0.10   3.20 --- 2.10   10.96 --- 10.66
1.57 --- 0.13   3.30 --- 2.90   11.00 --- 8.00
1.57 --- 0.25   4.70 --- 2.30   11.65 --- 10.00
1.59 --- 0.06   4.95 --- 4.15   12.00 --- 4.00
1.59 --- 0.10   4.95 --- 4.25   12.00 --- 6.00
1.59 --- 0.12   4.95 --- 4.35   12.00 --- 9.50
1.59 --- 0.13   4.95 --- 4.55   12.00 --- 10.00
1.59 --- 0.17   5.00 --- 4.20   12.00 --- 11.00
1.59 --- 0.18   5.10 --- 1.90   12.20 --- 5.00
1.59 --- 0.25   5.90 --- 3.00   12.45 --- 8.88
1.59 --- 0.75   5.90 --- 3.90   13.66 --- 12.66
1.59 --- 1.00   6.00 --- 3.00   17.00 --- 9.00
1.59 --- 1.20   6.00 --- 4.00   18.00 --- 12.00
1.75 --- 1.40   6.17 --- 5.82   18.90 --- 6.50
  ●  Large option of  OD / ID sizes
●  HPLC tube OD 1/16" (1.59mm)
●   New sizes are able to customize






  ●  Chromatograph (HPLC / UHPLC)
●  Medical & healthcare
●  Semi-conductor
●  Automobile industry
●  Other Sience instruments
